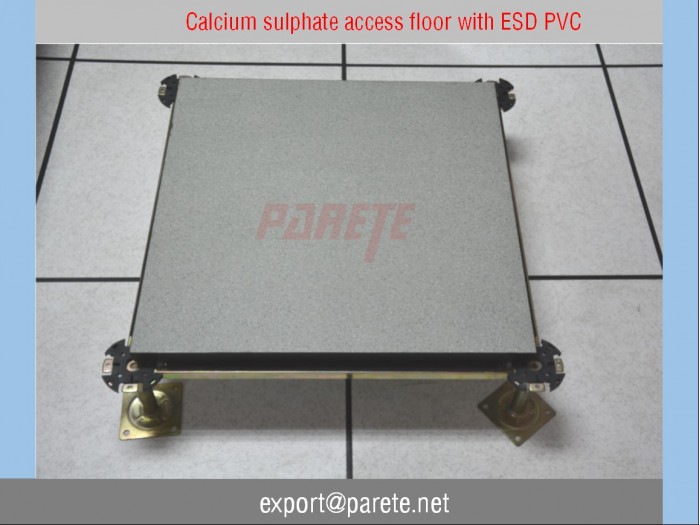

AF-8-Calcium sulphate access floor with anti static PVC covering

Brand Name:         Parete

Product No.:          PRT-FS662, PRT-FS800,  PRT-FS1000

MOQ:                      10 m2

Unit Price:              30 USD/m2 to 90 USD/m2 (Decided by technica requirements)

Packing:                 About 450 m2 for 20 GP Container

Packing Style:       Parete Logo, Neutral,  OEM logo

Production time:  7 days to 30 days, 500m2, 10 days for one 20GP container

Delivery time:        Asian : 10 days, Middle East: 20 days, Africa:  30 days,

                                 European: 30 days,  North American:  20 days;

                                 South American: 30 days, Australia: 15 days; Russia: 30 days

Payment terms:   T/T, L/C

Supply Ability:       50,000 m2 per month

Calcium sulphate access floor with HPL covering


Product discription


Calcium sulphate anti-static raised access floor panel is made of high-strength calcium sulphate core. The top surface is stuck with High Pressure Laminate (HPL) or PVC or ceramic, the bottom is covered with aluminum foil or galvanized steel sheet. Four edges are sealed with black ABS edge trim.


calcium sulphate access floor



Product advantages:


1. High loading capacity, and conductivity.

2. Calcium sulphate core, non combustible

3.  High evenness and dimensional accuracy, and good interchangeability.

3. Good sealing and acoustic,

4. Keep stable in different temperature and humidity.

5. Environment friendly and free of pollution.

calcium sulphate access floor


Technical data of steel anti-static access floor


calcium sulphate access floor


Calcium Sulphate Core production


Flue-gas desulfurization (FGD) is mixed with fiber (recycled paper and some glass fiber, natural gypsum, and water. There will be mixed in a tank, then the slurry will be spay to a forming module and compress to a density.


calcium sulphate access floor

Their sizes is bigger than the access floor panel, for they should be cut in the four edges to a angle about 84 degree before stick the electrostatic conductive PVC edge.

After formed in a module, they will be sent to the baking to dry in a set humidity and temperature. The panels will be stayed in the oven about 12 hours to a very stale status.


calcium sulphate access floor


Then they will be transferred to the polishing line to sand to the required thickness and cut to the size according to the order. These are the law material of the calcium sulphate raised access floor panel.

During the transfer or transportation, the edges or corners should be protected well to avoid the breakage.

All the waste or dust of cutting and sanding should be collected to recycle in the next production.

calcium sulphate access floor


calcium sulphate core sanding


calcium sulphate core sanding


calcium sulphate core drying


calcium sulphate core drying

Quality Control


data center access floor



HPL covering


After using a variety of special paper phenolic, melamine, resin processing, high temperature and pressure made of thermosetting resin decorative laminates. It is not only bright color, bright and smooth, and has a wear-resistant, heat resistance, pollution, washable and permanent decorative features, the standard thickness of 0.8mm, 1.0mm, 1.2mm, 1.5mm, the thickness can development of user requirements.

High pressure melamine laminate is widely used in varies computer rooms and data centers. It is anti-static, anti-wear and free of pollution.  It is anti scratch and wear resistance. It is economical and easy glued on the surface of metal, calcium sulphate panel and wood core surface. So it is the most welcome floor covering.


Steel access floor HPL covering



Calcium sulphate anti-static raised access floor is used in the areas that have high standard in antistatic, loading capacity, fire resistance, good evenness and appearance. For example, computer room of bank, cabinet room of telecom, intelligent office, control center of military, and other high standard computer room.


control room access floor

Monitoring room


data center

Data center access floor/ raised floor


server room access floor

Server room access floor / raised floor


calcium sulphate access floor

Computer room raised floor



server room access floor

China Mobile Telecommunication server room access floor



calcium sulphate access floor

calcium sulphate access floor

calcium sulphate access floor

Brocasting control room access floor / raised floor
