VF-4-Steel Ventilation access floor (31% Ratio)

Brand Name:         Parete

Product No.:          PRT-FS662, PRT-FS800,  PRT-FS1000

MOQ:                      10 m2

Unit Price:              25 USD/m2 to 80 USD/m2 (Decided by technica requirements)

Packing:                 About 500 m2 for 20 GP Container

Packing Style:       Parete Logo, Neutral,  OEM logo

Production time:  7 days to 30 days, 500m2, 10 days for one 20GP container

Delivery time:        Asian : 10 days, Middle East: 20 days, Africa:  30 days,

                                 European: 30 days,  North American:  20 days;

                                 South American: 30 days, Australia: 15 days; Russia: 30 days

Payment terms:   T/T, L/C

Supply Ability:       100,000 m2 per month

Steel perforated access floor for Ventilation (VF-4)


Product discription


The shell is similar to the anti-static steel access floor panel. But the inside of the shell is empty without cement. The bottom and top steel plate is perforated or some type of bottom will reinforced by rids. The perforated access floor panel is used the areas that need ventilation. It will be often used together with the steel anti-static access floor. The perforated rate will be from 17% to 50% according to the requirements of the application. The covering will be HPL, PVC or ceramic tile. Steel perforated panels is also called Air Flow panel because of many holes drilled through them. Perforated panels are of accurate size and thickness, interchangeable with steel access floor panels, wood core panels or calcium sulphate panels. Specially designed and well manufactured damper is also available for perforated panels.


ventilation access floor

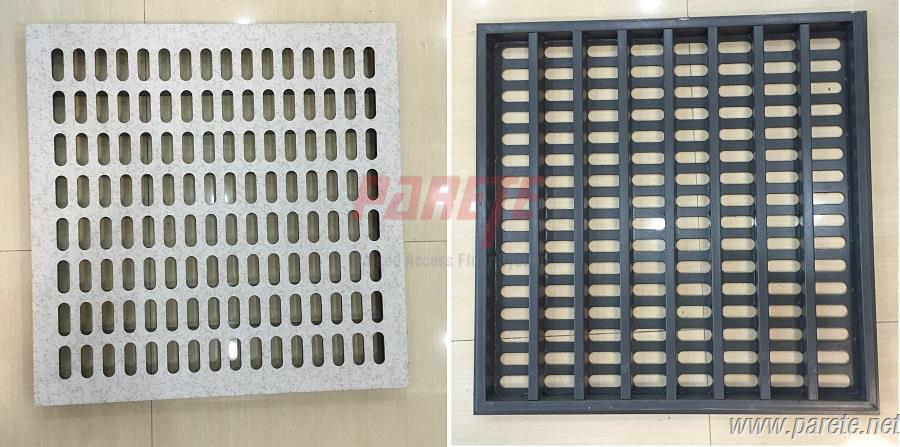

 The right side of the ventilation access floor (sifted floor)                                                            The back side of the ventilation access floor (sifted floor)

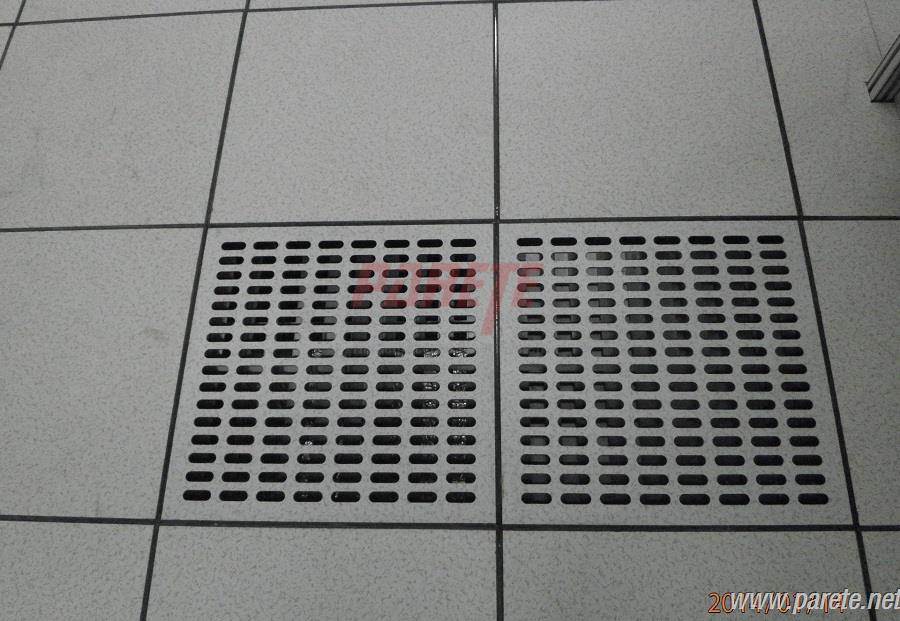

 ventilation access floor (sifted floor)

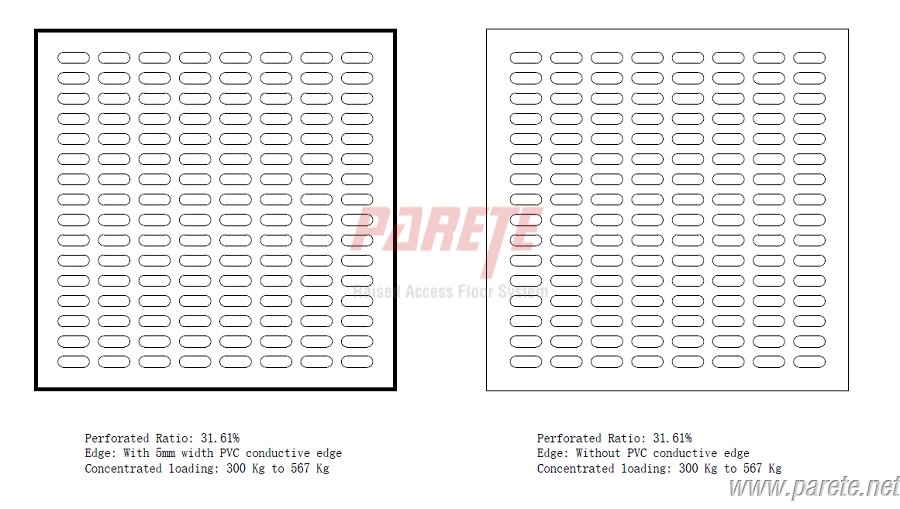

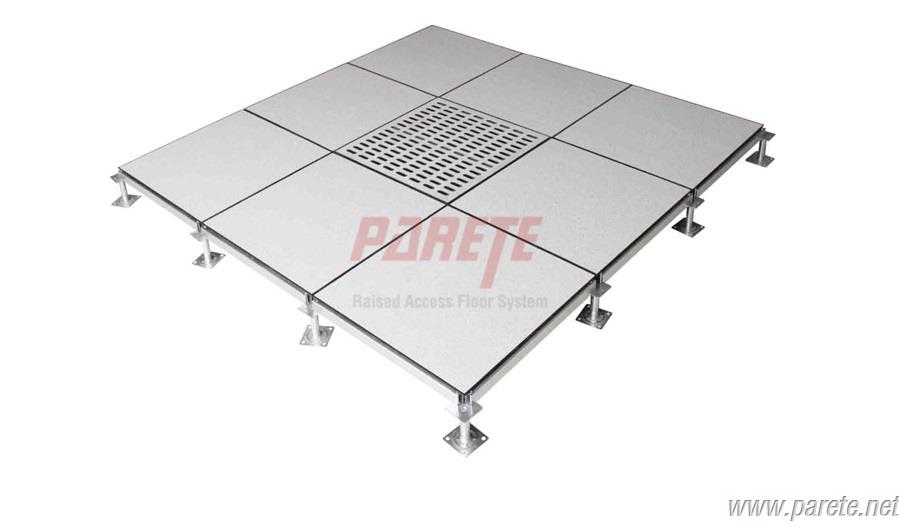

                                                                                             The system of ventialtion access floor system (31 Ratio )


 ventilation access floor (sifted floor)

 ventilation access floor (sifted floor)

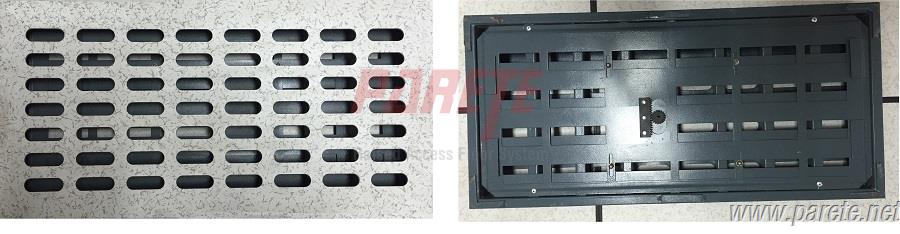

                                Special size ventilation access floor (600*300mm)                                      adjustable control valve floor


Steel access floor sopt welding



Product advantages:


1. Made of steel plate, high mechanical strength, high loading capacity, good fire resistance.

2. Interchangeable with wood core panel/calcium sulphate panel

3. Provide superior cooling for managing heat loads in mission critical facilities

4, The ventilation rate will be 17%~45% and can satisfy different requirements of cleaning room.



Technical data of steel anti-static access floor


The ventilation access floor will match the standard solid access floor.

HPL covering


After using a variety of special paper phenolic, melamine, resin processing, high temperature and pressure made of thermosetting resin decorative laminates. It is not only bright color, bright and smooth, and has a wear-resistant, heat resistance, pollution, washable and permanent decorative features, the standard thickness of 0.8mm, 1.0mm, 1.2mm, 1.5mm, the thickness can development of user requirements.

High pressure melamine laminate is widely used in varies computer rooms and data centers. It is anti-static, anti-wear and free of pollution.  It is anti scratch and wear resistance. It is economical and easy glued on the surface of metal, calcium sulphate panel and wood core surface. So it is the most welcome floor covering.


Steel access floor HPL covering




loading capacity

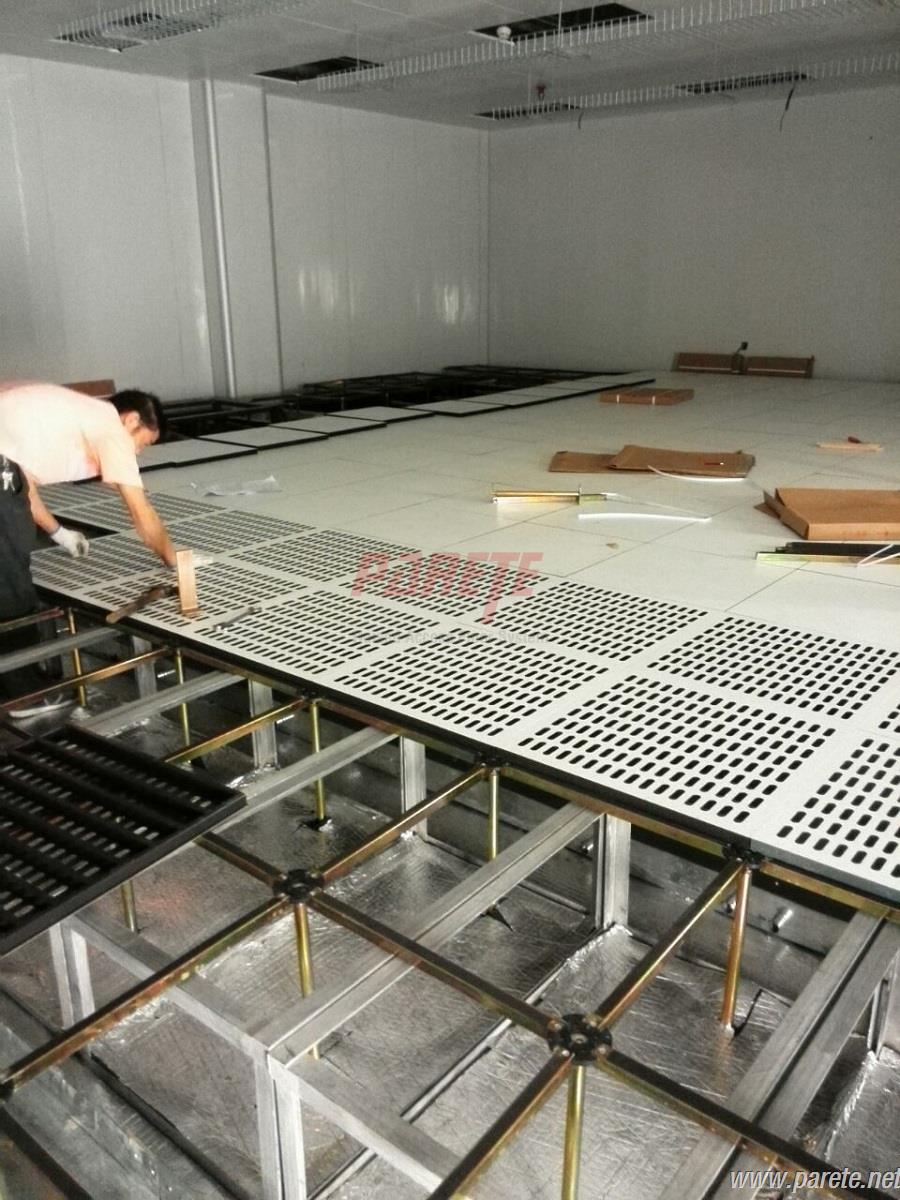

 ventilation access floor

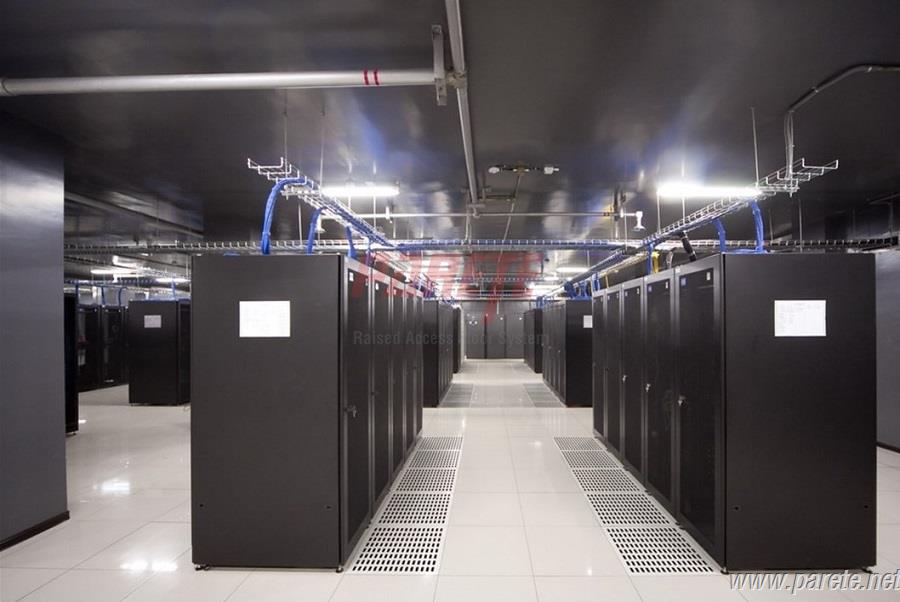

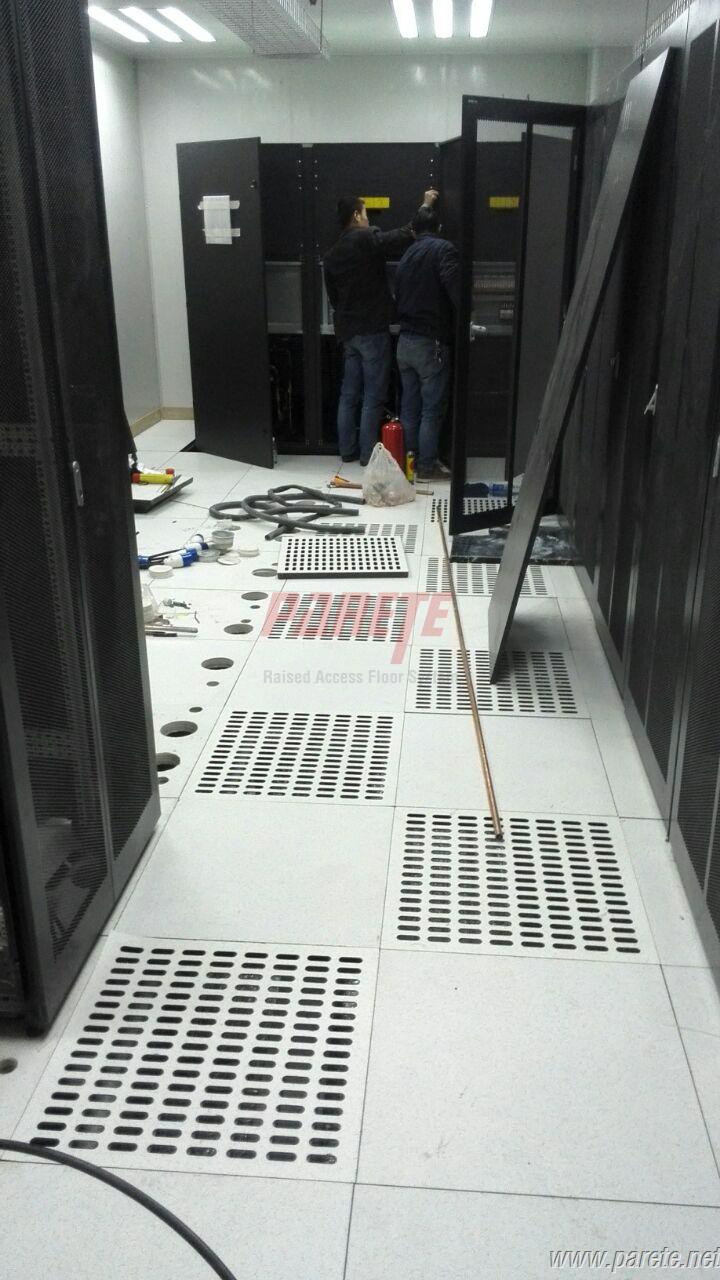

 ventilation access floor computer room

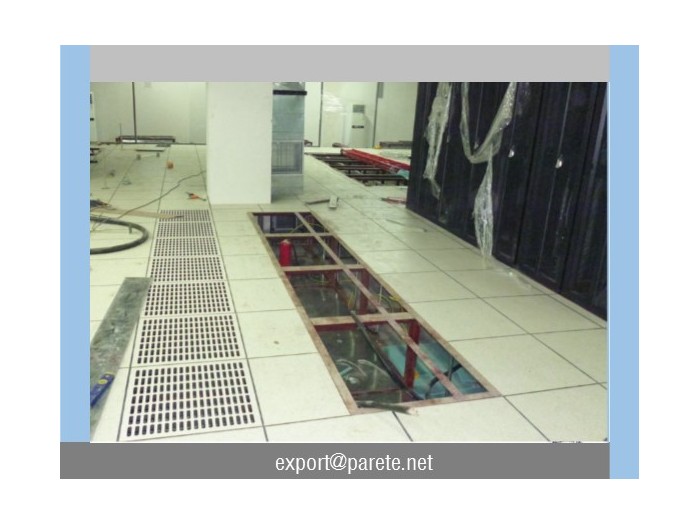

computer room ventilation floor



 ventilation floor



  • Panel thickness 41.2 mm
  • Weight 15.5 g
  • Dimensions 27.3 mm
  • Underside of the panel Mini-jack stereo
  • Covering 10,5 mm (clip compris)
