C4-OA 600 Bracing Support Raised Floor

Brand Name: Parete

Product No.: PRT-FS662, PRT-FS800, PRT-FS1000

MOQ: 10 m²

Unit Price: 25 USD/m² to 80 USD/m² (Decided by technica requirements)

Packing: About 500 m² for 20 GP Container

Packing Style: Parete Logo, Neutral, OEM logo

Production time: 7 days to 30 days, 500m2, 10 days for one 20GP container

Delivery time: Asian : 10 days, Middle East: 20 days, Africa: 30 days,

European: 30 days, North American: 20 days;

South American: 30 days, Australia: 15 days; Russia: 30 days

Payment terms: T/T, L/C

Supply Ability: 100,000 m² per month

More info
Data sheet

C4-OA-600 Bacing support Steel raise dloor

Product discription

Steel bare finish raised floor panel is made of good quality cold-rolled steel sheet with foaming cement fully filled. The bottom is high quality deep stretch coil steel plate. The top is cold rolled hard plate. The top steel plate and bottom steel plate are spot-welded to form a high quality shell. The shell is treated by phosphate and painted with epoxy powder coating. Then foaming cement will be filled into the shell. After curing, the structure will be stable and strong to support the designed loading capacity . The access floor panel has high strength and high durability.

OA Raised floor is specially designed for the modern office. It is convenient for cabling and overcome the disadvantages of traditional cabling solution. It meets the requirements of fast change of network, variety of input and output ports, different heights of office, anti-static and fire resistance. So it is greatly suitable to use in the following buildings: large scale office, computer facilities, intelligent office, securities hall, government office, financial institution, research institution, broadcasting center, post telecommunications, communication station, audio-visual education center, advertising and publication, conference center, media production center, commercial web center, electrical power and traffic control center etc. It greatly boost the development of modern high technology.

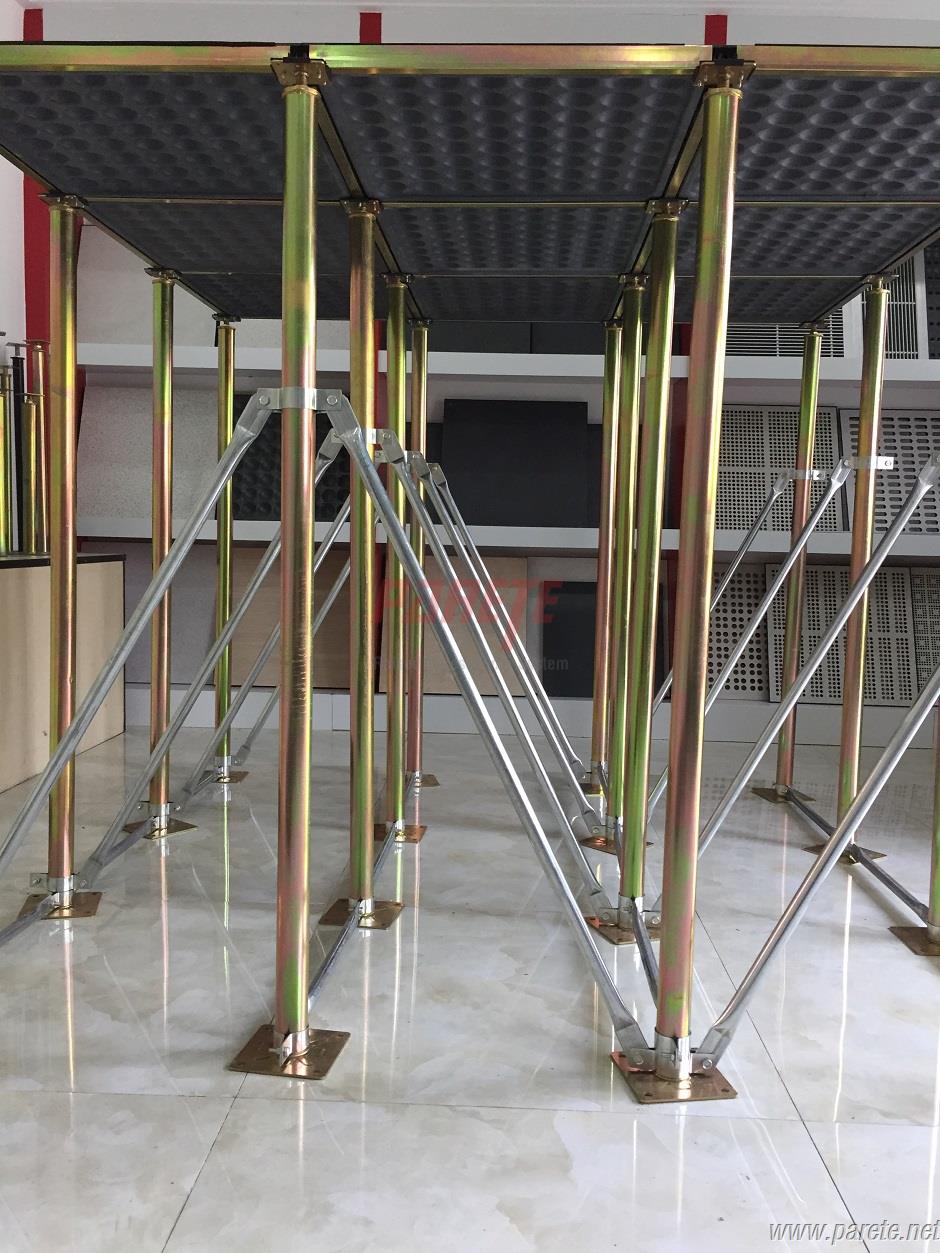

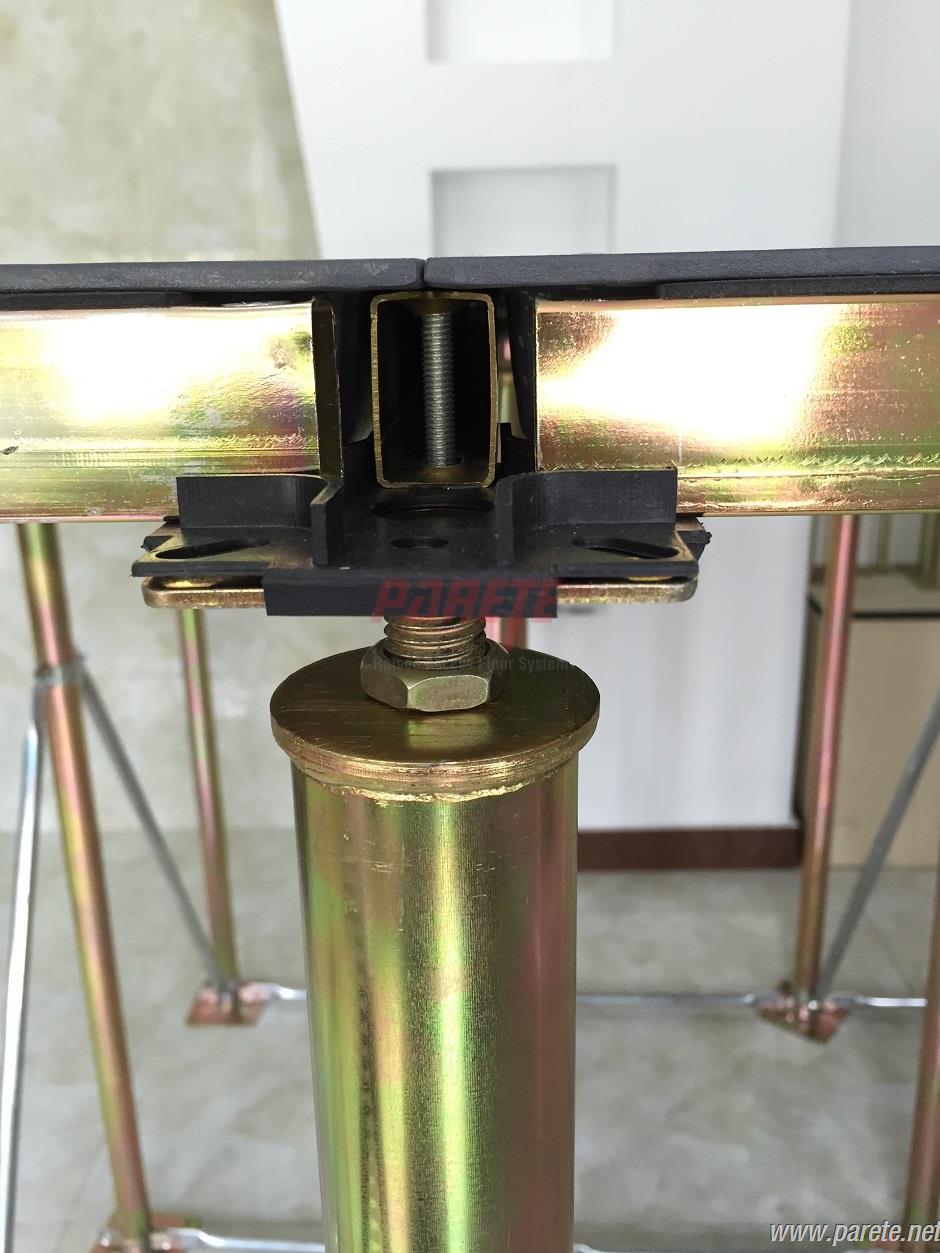

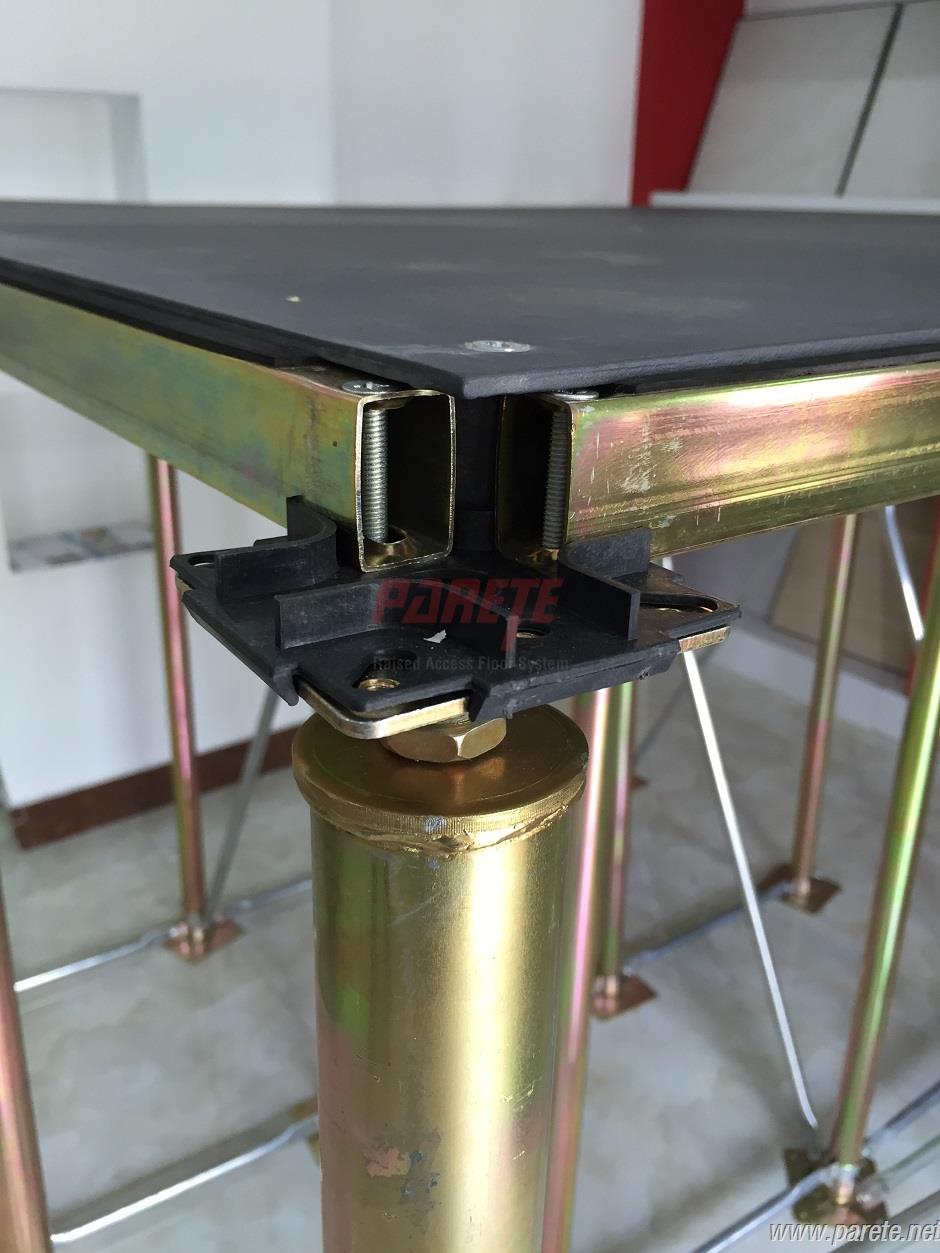

Bracing Support Raised floor

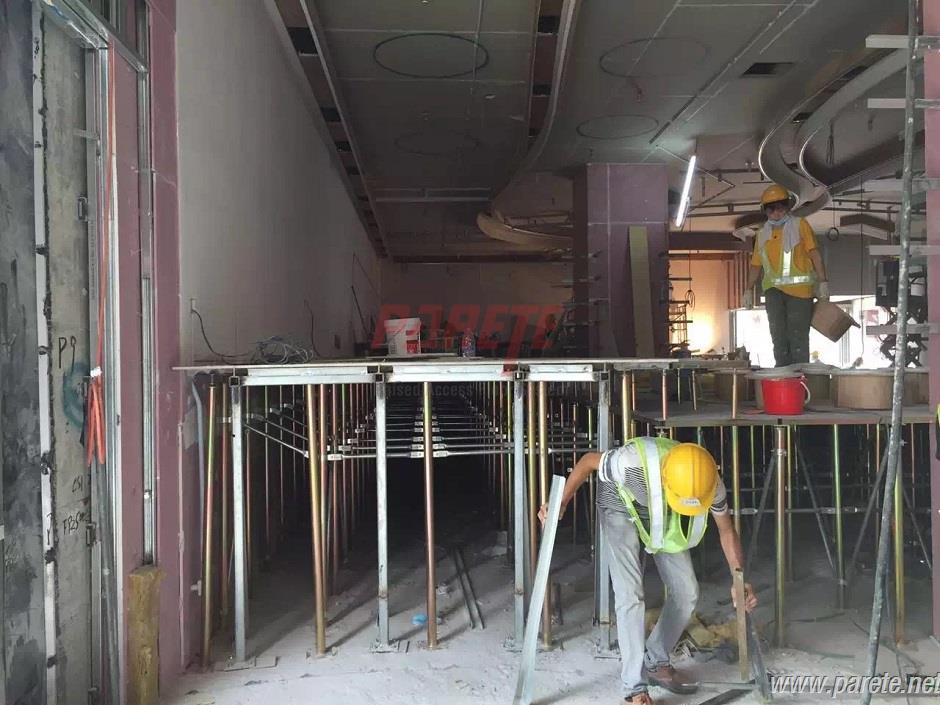

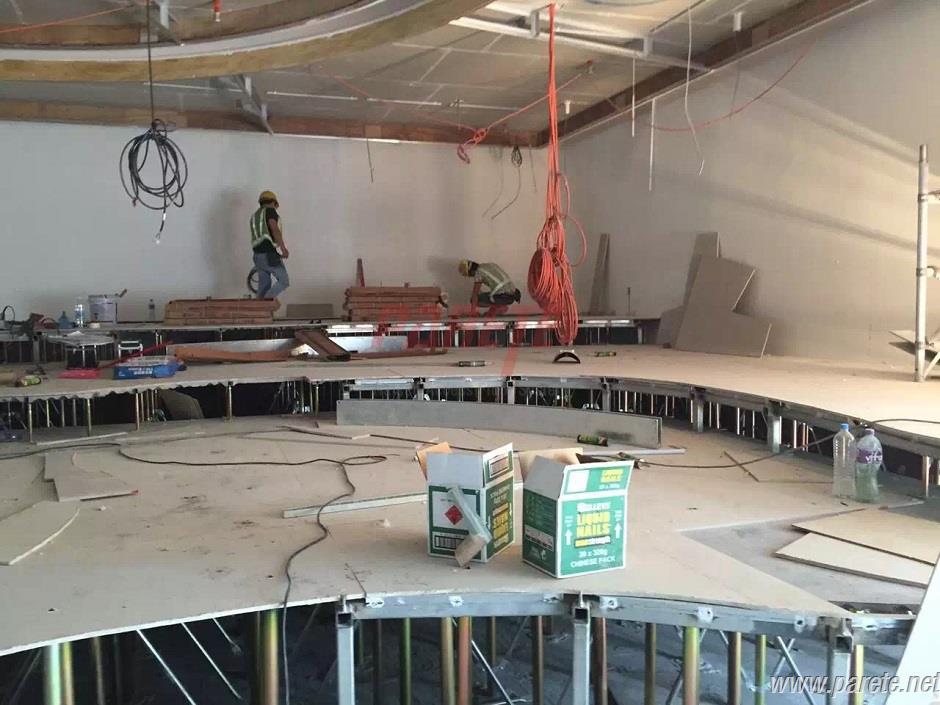

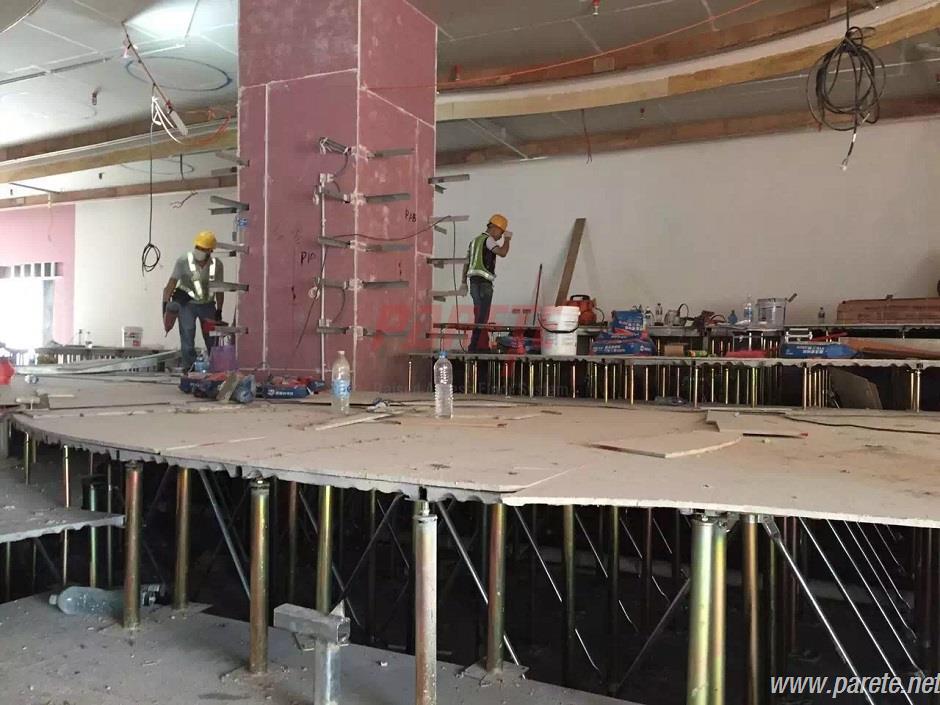

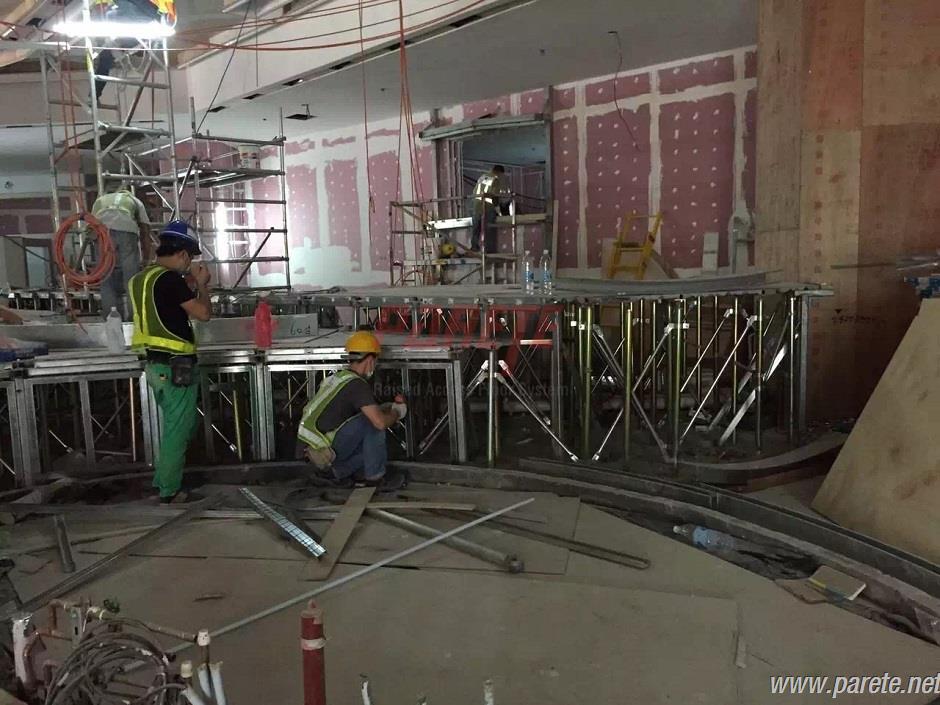

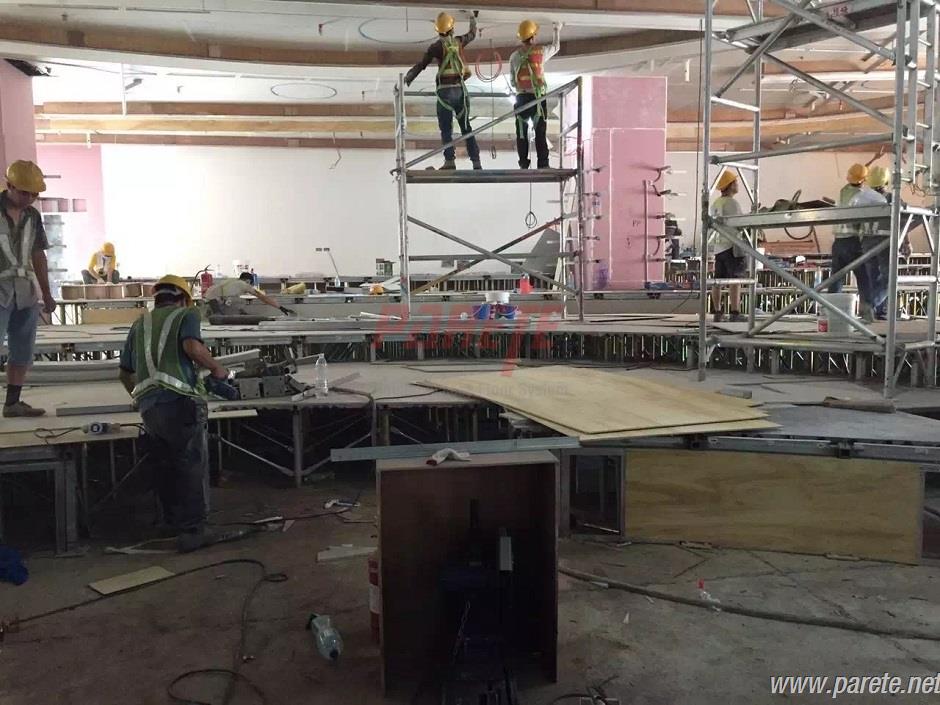

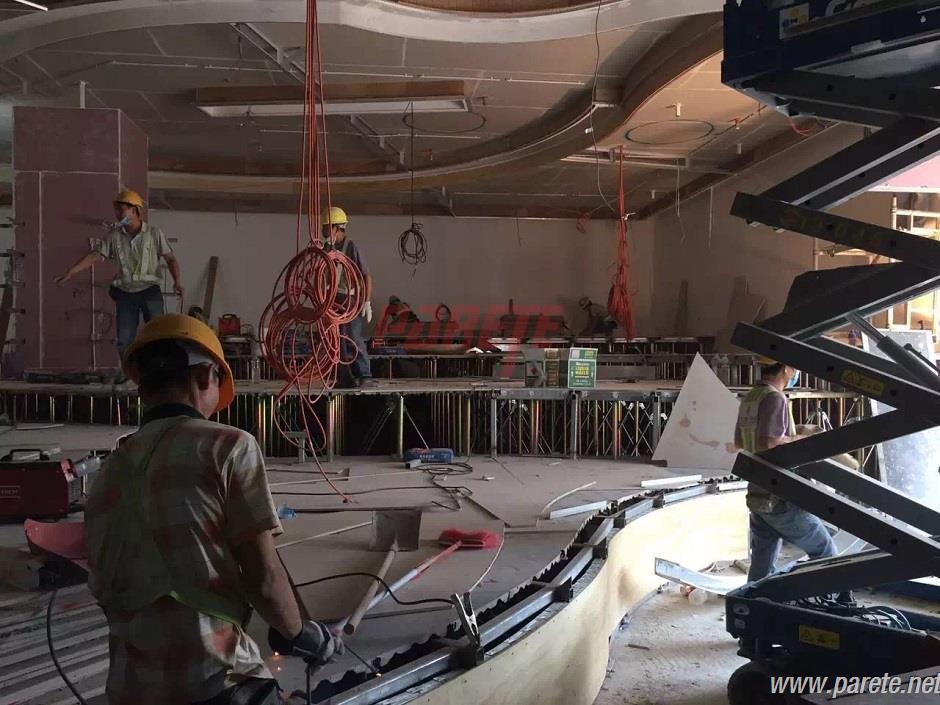

bracing support raised floor application

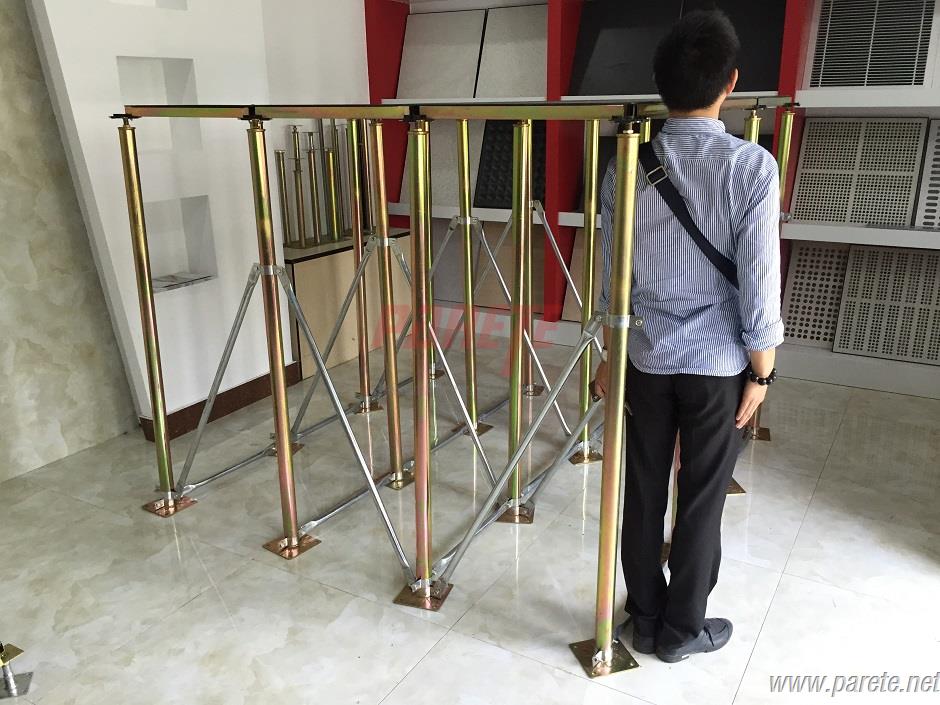

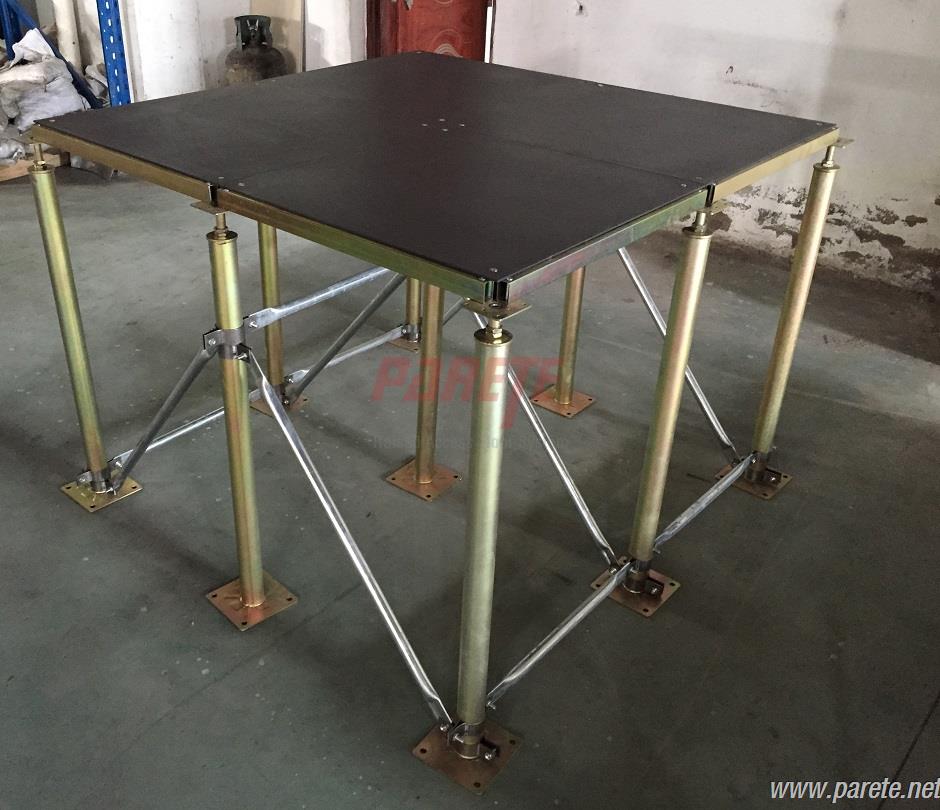

Bracing Support Raised floor

Product advantages:

1. Made of steel plate, high mechanical strength, high loading capacity, good fire resistance.

2. Epoxy power painting on surface, matt and soft, wear resistant and anti-corrosion.

3. Covering is glued under high pressure. Multiple choices and good decorated surface. Wear resistant and anti scratch, excellent electrical conductivity, anti pollution and easy cleaning.

4. High dimensional accuracy, interchangeable, flexible assembly, easy maintenance.

5. Products can be upgraded or adjusted according to the loading requirements.

bare finish steel raised floor panel

Technical data of steel anti-static access floor

Type	Size	Concentrated load			Impact resistant load (N)	Ultimate load (N)	Uniform distributed load (N/m²)	Rolling road (N)
No	Size	LB	N	KG	Impact resistant load (N)	Ultimate load (N)	Uniform distributed load (N/m²)	10 times	10000 times
PRT-OA-C4-G662	600×600×33	≥662	≥2950	≥301	≥445	≥8850	≥12500	2214	1545
PRT-OA-C4-G800	600×600×33	≥800	≥3550	≥363	≥670	≥11250	≥16100	2946	2356
PRT-OA-C4-G1000	600×600×33	≥1000	≥4450	≥453	≥670	≥13350	≥23000	3560	2670
PRT-OA-C4-G1250	600×600×33	≥1250	≥5560	≥567	≥670	≥16680	≥33000	4450	3560
PRT-OA-C4-G1500	600×600×35	≥1500	≥6665	≥680	≥670	≥19995	≥39324	5560	4450
PRT-OA-C4-G2000	600×600×35	≥2000	≥9000	≥910	≥670	≥31130	≥58000	6697	5596

Applications

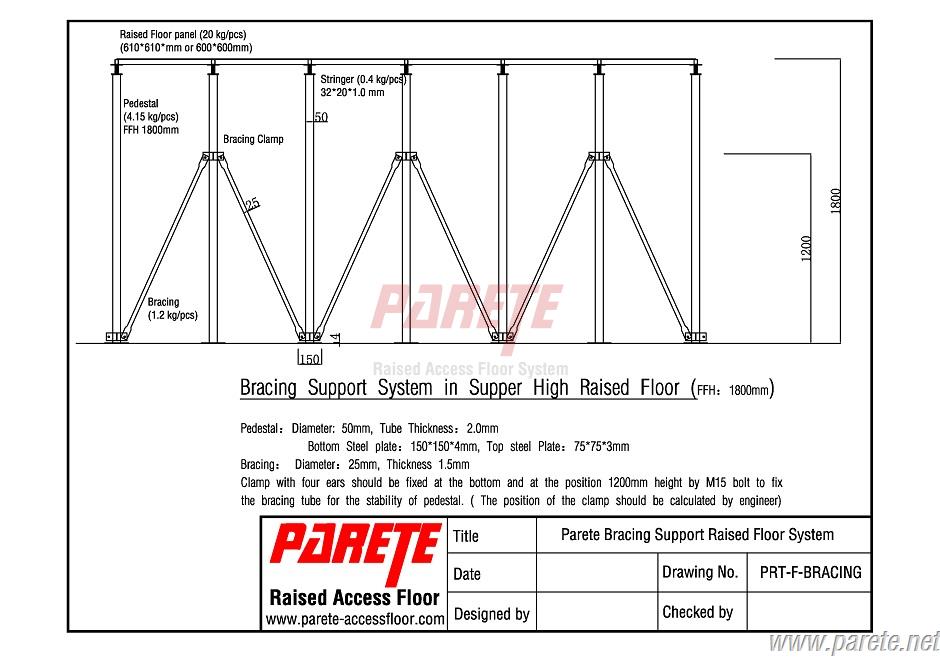

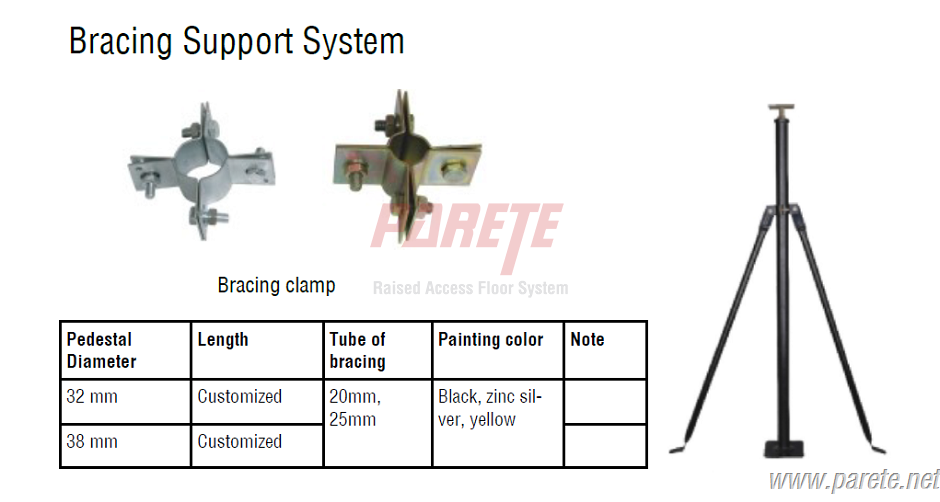

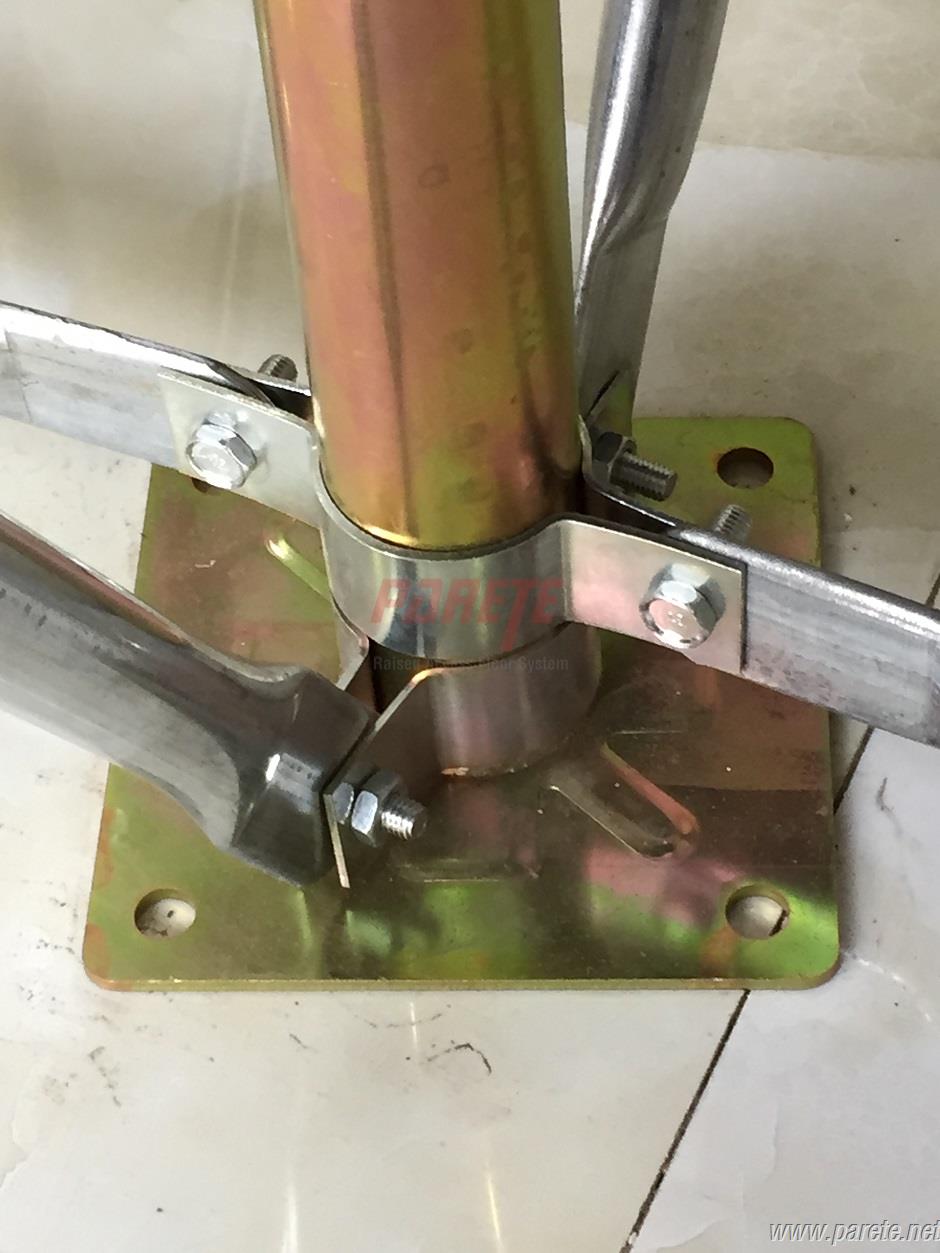

We suggest to use the bracing support in the pedestal that FFH more than 500mm to get a more stable system. Bracing can be customized according to the details requirements from customer’s specification. The following area will be applied with bracing support pedestal:

The FFH is more than 500mm, the tube diameter of pedestal is below 30mm.

The area that have a lot of dynamic loading

Complex layout of the floor

Multi steps

High requirement of acoustic area

Special area that customer required

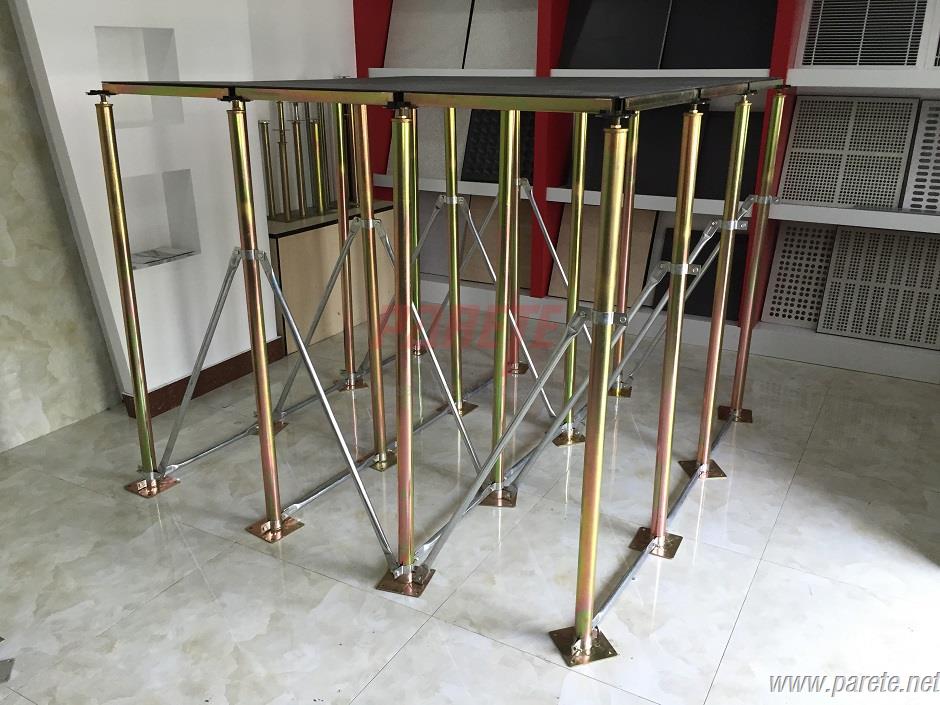

Bracing Support Raised floor
